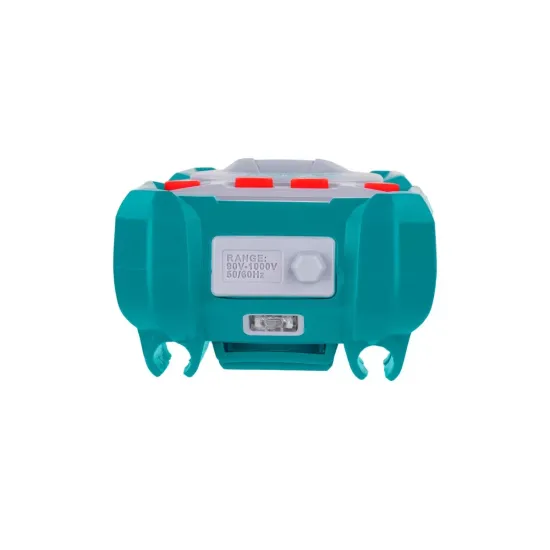

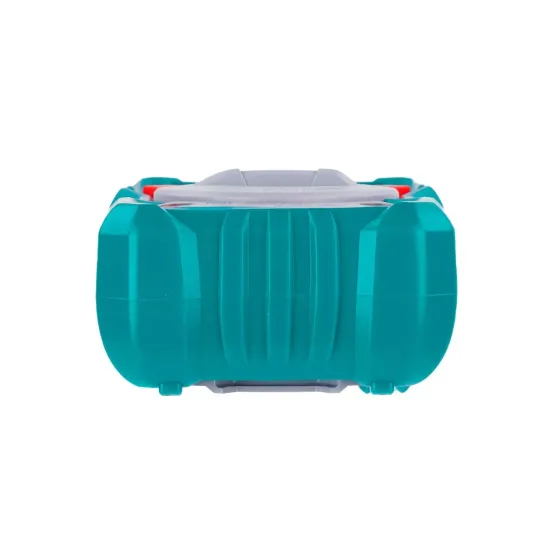

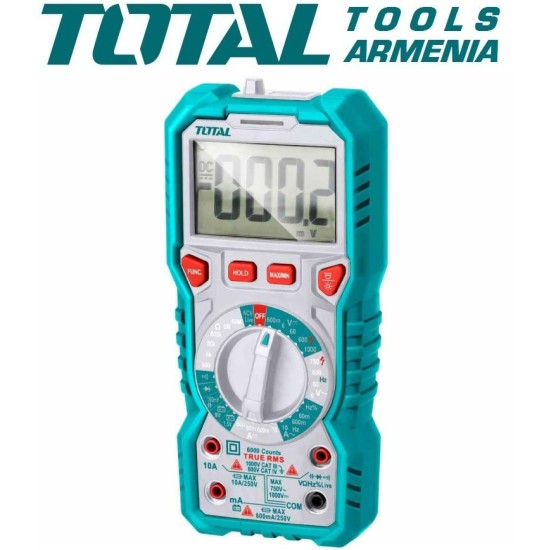

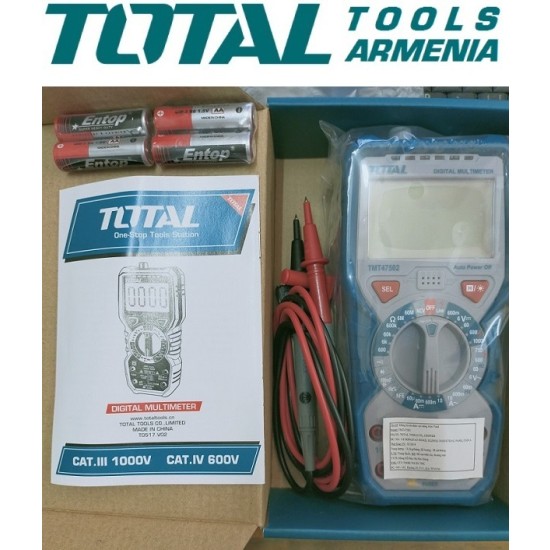

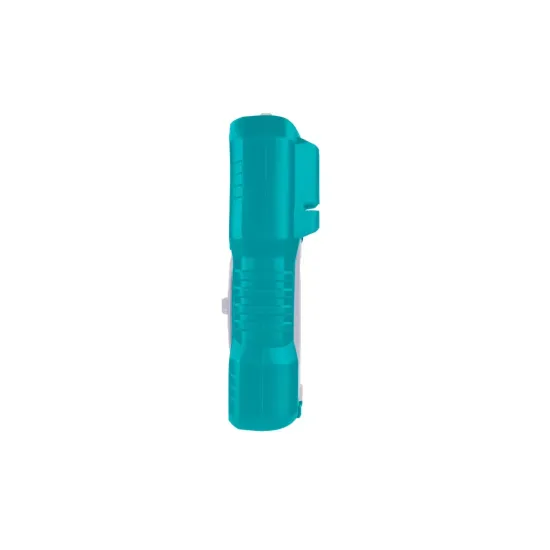

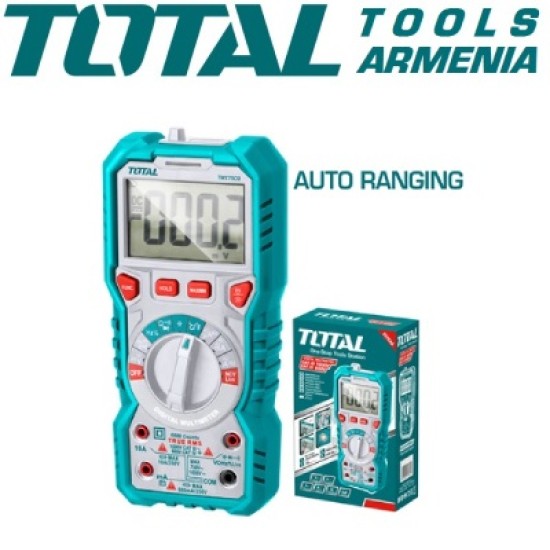

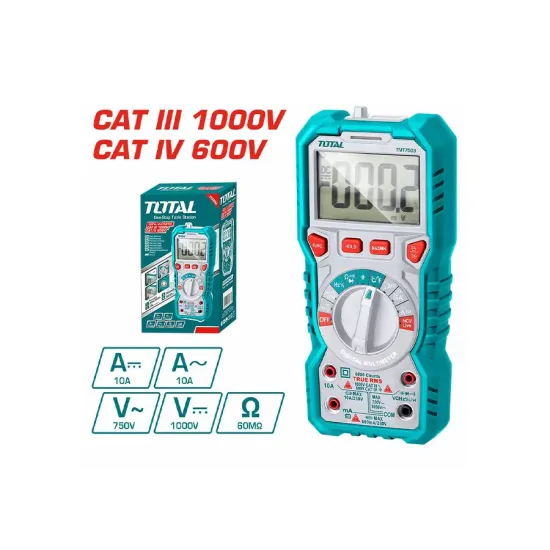

Autorange multimeter TOTAL TMT47504


  • TOTAL TMT47504 digital multimeter is designed to measure voltage, DC current and resistance.
  •  The results are displayed on the LCD with large numbers.
  • The choice of the measurement range of values ​​is carried out manually, it is enough to set the desired position of the multi-position switch.
  • The presence of a backlight makes it easier to work in dimly lit places.
  •  Functions: Poetry indicator Screen lighting Ability to follow instructions.


  • DC Voltage: 600mV/6V/60V/600V/1000V ±(0.5% +3).
  • AC Voltage:6V/60V±(0.8%+3) 600V/750V±(0.8%+5).
  • DC Current: 60μA/60mA/600mA ±(0.8%+3) 10A ±(1.2% +3).
  • AC Current: 60mA/600mA ±(1.0%+3) 10A ±(1.2% +3).
  • Resistance:600Ω/6kΩ/60kΩ/600kΩ/6MΩ ±(1.0% +3) 60MΩ±(1.5%+30).
  • Capacitance:10nf ±(4.0%+5).
  • 100nf/1000nf/10μF/100μF/1000μF ±(4.0%+3).
  • 10mf/100mf±(5.0%+5).
  • Frequency:10Hz/100Hz/1000Hz/10KHz/100K. Hz/1000KHz/10MHz±(1.0%+3).
  • Duty cycle: 1%~95% ±(3.0% +3) Diode test.
  • Data hold.
  • With backlight function With flash light function.
  • With lower battery indication function.
  • Packed by color box.

Technical
DC voltage 600mV/6V/60V/600V/1000V ±(0.5% +3).
AC voltage 6V/60V±(0.8%+3) 600V/750V±(0.8%+5).
DC current 60μA/60mA/600mA ±(0.8%+3) 10A ±(1.2% +3).
Type Autorange multimeter
AC current 60mA/600mA ±(1.0%+3) 10A ±(1.2% +3).
Resistor 600Ω/6kΩ/60kΩ/600kΩ/6MΩ ±(1.0% +3) 60MΩ±(1.5%+30).
Capacitance 10nf ±(4.0%+5). 100nf/1000nf/10μF/100μF/1000μF ±(4.0%+3). 10mf/100mf±(5.0%+5).
Structure
Temperature 0 to +40
Screen LCD display, counts 6000
Set
Packing Cardboard box
