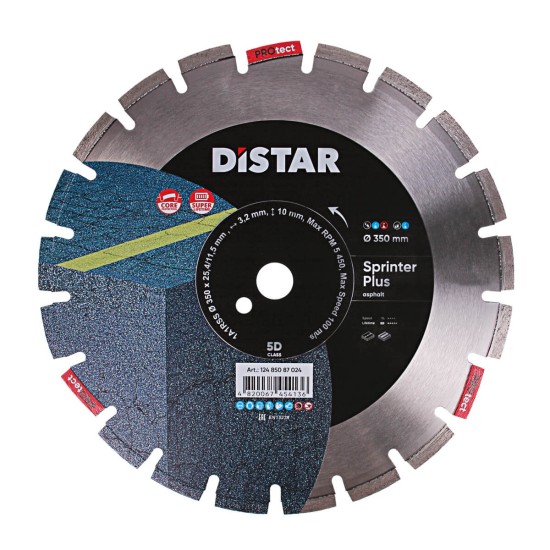

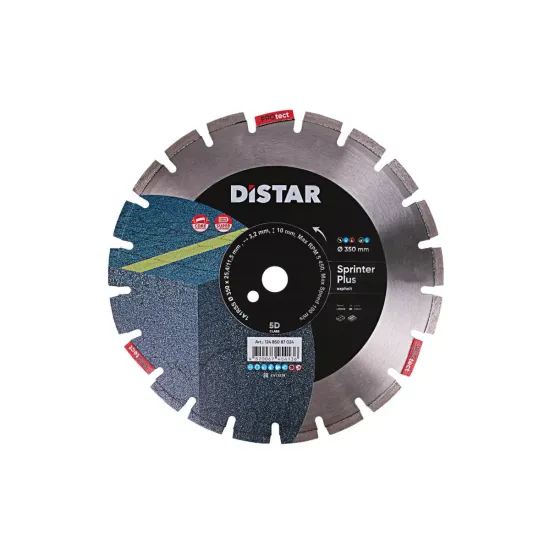

Diamond cutting disc 1A1RSS 350 Sprinter Plus 12485087024
- Disc diameter 350 mm.
- Number of segments 21
- Diameter of the mounting hole 25.4 F4 mm.
- Tooth width 11․5 mm - 10 mm with diamond coating.
- Disc thickness 3․2 mm.
- Maximum rotation speed 5450 rpm.
- Maximum speed 100 m/s.
- Cooling: wet cut/dry cut.
- Materials for use: asphalt, areshly laid concrete, abrasive materials.
- Compatible with TPC9203556.TP1016-1.TP1016-2.

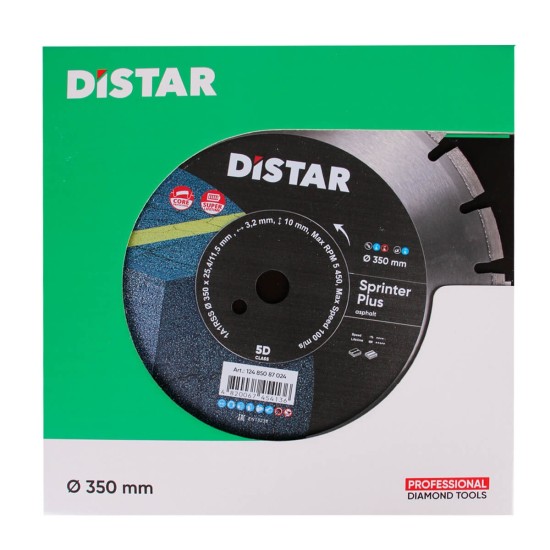

- Packed in a color box.
When cutting asphalt and asphalt concrete to a depth of more than 7 centimeters, it is recommended to use additional cooling with water, and also to perform work in several approaches, which will reduce tool wear and increase productivity.

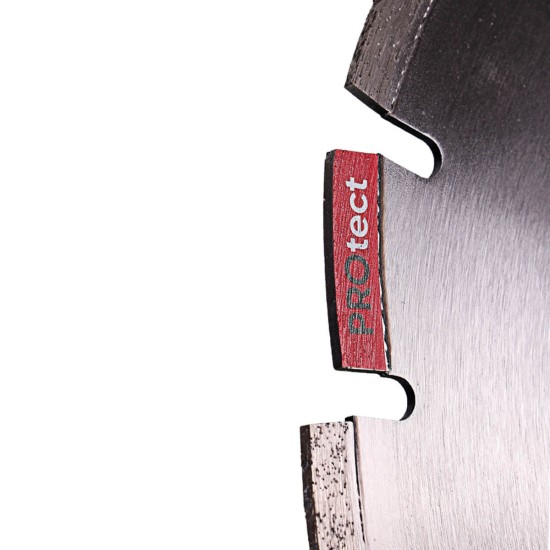

The disc has beveled protective segments that protect the body and increase the service life of the tool.
There are several models of the disc on the market, in particular, they differ in diameter, which ranges from 300 to 600 millimeters. It is used in combination with joint cutters and gas cutters.
The data are provided under the following conditions:
- disk Ø 350 mm;
- cutting depth 50 mm;
- operation with a serviceable joint cutter with a power of 13 kW and a rotation speed of 2500 rpm;
- air temperature +25 C°.
The data is for reference only. Under other operating conditions, the performance parameters may differ significantly.
- Stock: In Stock
- Reward Points: 6210
- Model: 12485087024
- Weight: 2.00kg
- Dimensions: 355.00mm x 355.00mm x 10.00mm
- SKU: 910003
- TN VED codes of the EAEU: 68042100000
