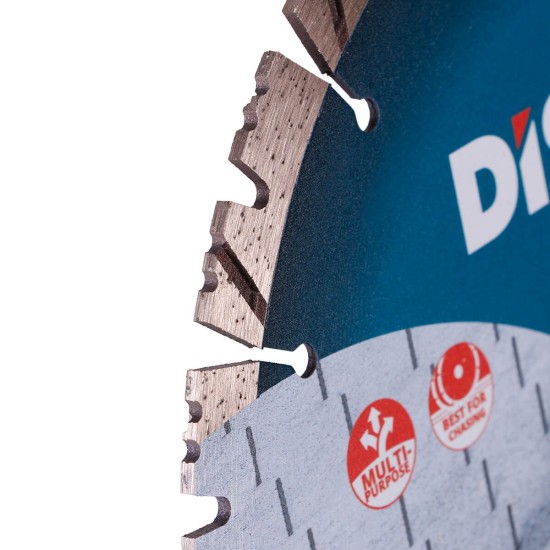

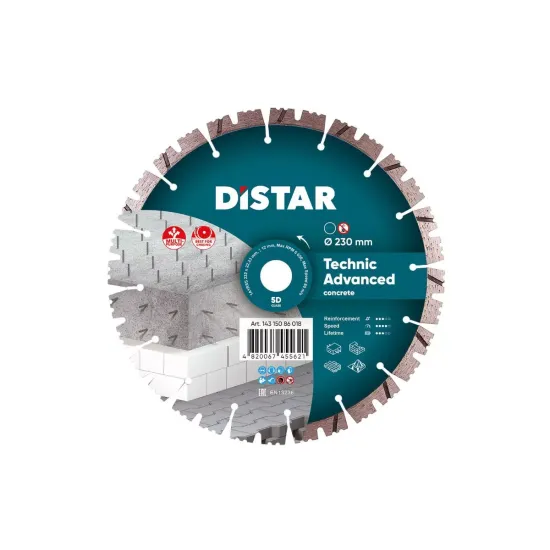

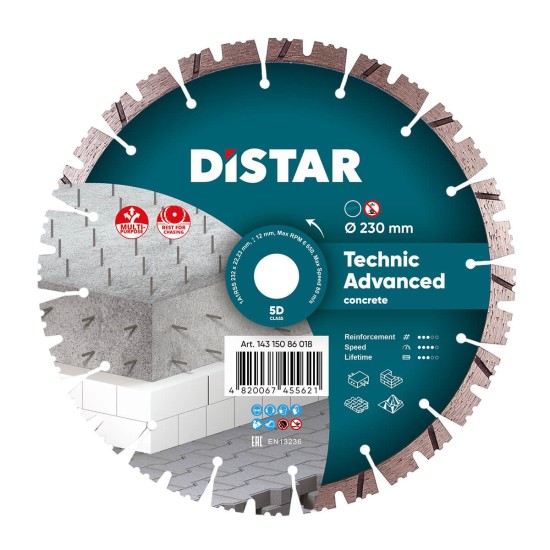

Diamond Cutting Disc 1A1RSS 232 Technic Advanced 14315086018
- Disc diameter 230 mm.
- Bore diameter 22․23 mm.
- Tooth width 12 mm with diamond coating.
- Disc thickness 2․6 mm.
- Maximum rotation speed 6650 rpm.
- Maximum speed 80 m/s.
- Cooling: without cooling.
- Materials for use: granite, reinforced concrete, paving slabs, unreinforced concrete.

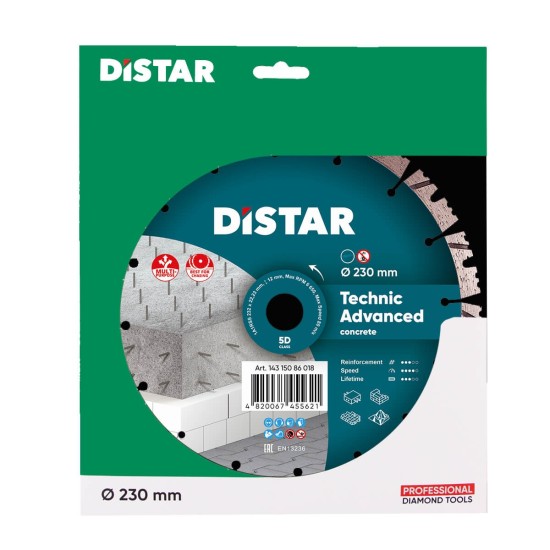

- Packed in a color box.
DISTAR TECHNIC ADVANCED This is a universal disc. Designed to work with paving slabs, concrete and black granite. In addition, it is used for brick, reinforced concrete, sandstone, and colored granite. Due to its versatility and affordable cost, it has gained wide popularity among construction teams.
The diamond disc is available in two variations, 125 and 232 mm, with a segment thickness of 2.2 and 2.6. The height of the diamond coating is almost the same, 11-12 mm. The working speed is 0.5 meters per minute with a working resource of up to 60 linear meters on M 400 concrete with reinforcement up to 12 mm.
The data are given under the following conditions:
• concrete M400, reinforcement Ø12 mm, 6 pcs./1 running meter;
• Ø 230 mm;
• cutting depth - 6 cm;
• pendulum cutting method;
• serviceable angle grinder with a power of 2.5 kW and a rotation speed of 6500 rpm;
• air temperature +25 °C.
The data is for reference only. Under other operating conditions, the performance parameters may differ significantly.
- Stock: In Stock
- Reward Points: 1800
- Model: 14315086018
- Weight: 2.00kg
- Dimensions: 235.00mm x 230.00mm x 15.00mm
- SKU: 910009
- TN VED codes of the EAEU: 68042100000
