Welding machine 250 A Inverter INDUSTRIAL

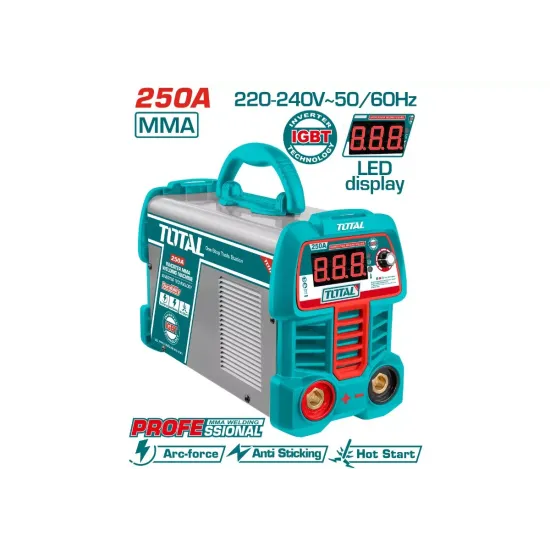

Welding machine TOTAL TW22506 250 A  INDUSTRIAL

• The Total TW22506 welding machine, always leading in quality, is designed compact, not bulky to help us move easily and quickly, the machine works continuously for a long time without reducing quality, capacity.


• The TW22506 electronic welding machine works with rods ranging from 1.6mm to 5.0mm. Stable arc, high sticking resistance, difficult-to-weld rods can be welded.
• Temperature control to protect equipment.
• ARC-Force: Adjusts the amperage to avoid sticking of the electrode when the distance between the electrode and the work piece decreases.
• Hot start: Simplifies arc striking by briefly increasing the amperage at the start of welding.
• Anti-Stick: cuts power to the equipment when the electrode sticks, taking care of the part, electrode and making it easier to take off.

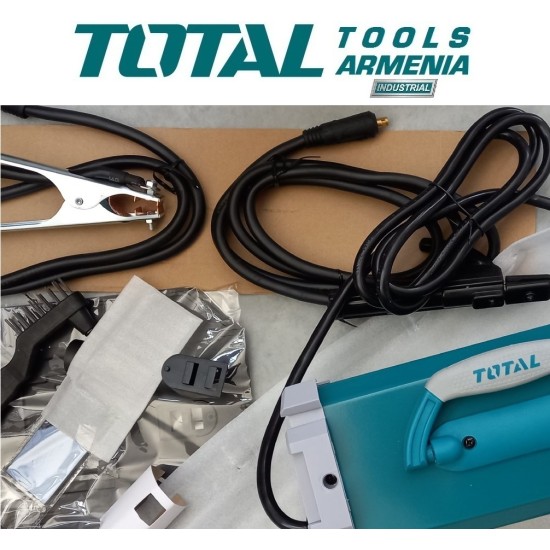

• Included in the set:
• Electrode holder 1 pc.
• Cable with grounding clamp 1 pc.
• Wire brush cable 1 pc.
• Helmet 1 pc.

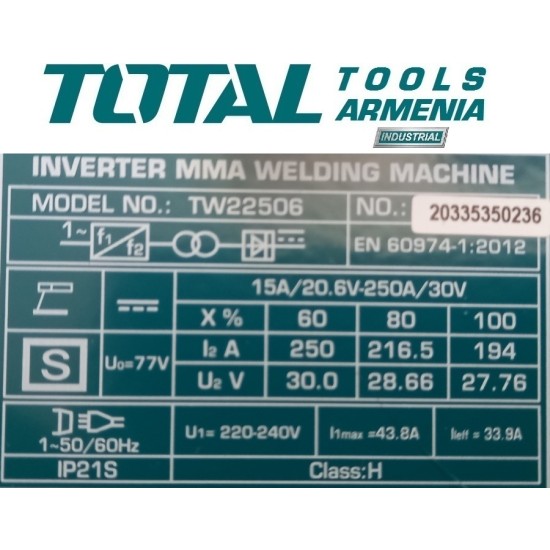

• Power: 10.1 kVA = 8.08 kW.

• Voltage: 220-240 V  ~ 50/60 Hz.
• Voltage Output: 15 - 250 A.
• No load voltage: 77 V.
• Maximum output voltage: 250 A.
• Performance: 60%
• Welding wire diameter: 1.6 - 5 mm.
• IGBT technology.
• IP21S protection rating.
• Insulation class: H.

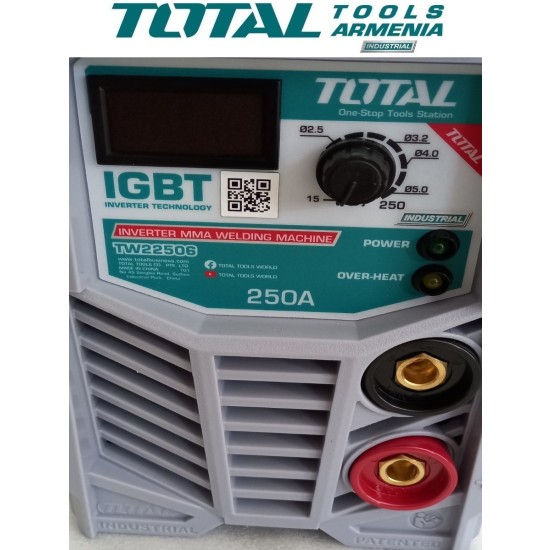

• LCD display.

• Weight: 9.5 kg.
• Warranty: 1 Years
