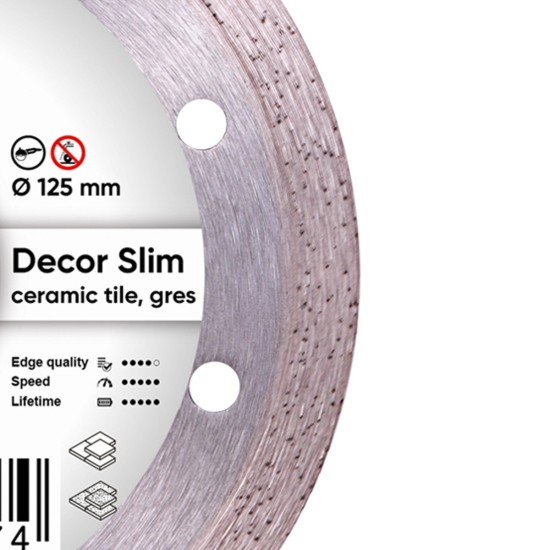

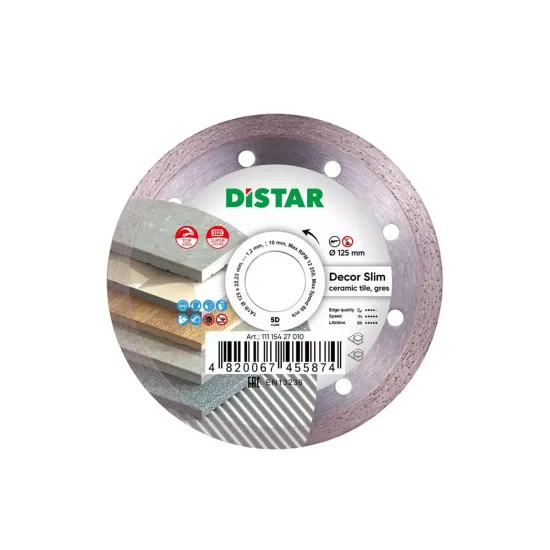

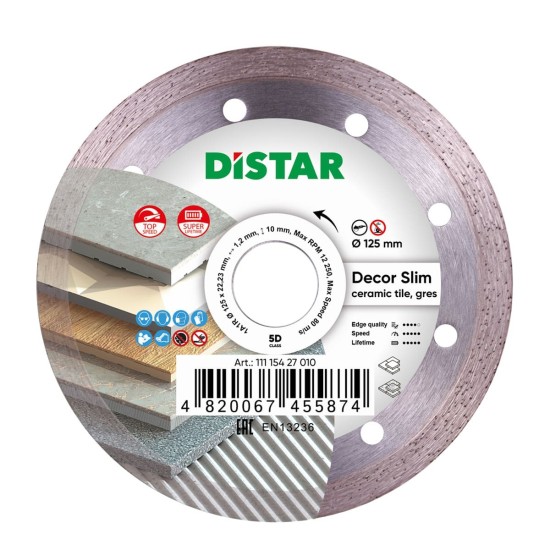

Diamond cutting disc 1A1R 125x22.22x10x1.2mm Decor Slim
- Disc diameter 125 mm.
- Mounting hole diameter 22․22mm.
- The depth of the blade: 10 mm diamond, the thickness of which is 1.2 mm.
- Disc thickness 1.2 mm.
- Maximum rotation speed 12250 rpm.
- Maximum speed 80 m/s.
- Cooling: Without cooling.
- Materials for use: Ceramics, Porcelain tiles.

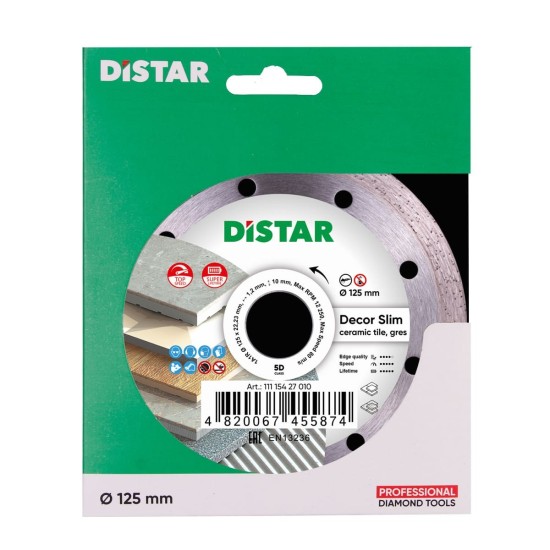

- Packed in a color box.
The DISTAR 1A1R DECOR SLIM 5D diamond disc has become a universal tool for cutting tiles of any type. After testing on various surfaces, it was recognized as the most optimal for processing porcelain stoneware, floor and wall tiles.
The disc has an ultra-thin layer of diamond cutting edge, only 1.2 mm, which allows for the thinnest and cleanest cut. When tested on 10 mm thick porcelain stoneware, the disc showed a high operating speed of 1.75 linear meters per minute, while maintaining high edge quality, rated at 4 points out of 5.
It is available on the market in two versions, with a diameter of 115 and 125 millimeters, with a standard mounting hole of 22.22.
Vertical - speed (running meters/min), horizontal - edge quality
The data are given under the following conditions:
• porcelain stoneware, 10 mm;
• Ø 125 mm;
• serviceable angle grinder with a power of 1.4 kW, with a rotation speed of 11,000 rpm;
• air temperature +25 C°.
The data is for reference only. Under other operating conditions, the performance parameters may differ significantly
/ # / — Edge quality
/ 3 / — Average
/ 4 / — Good
/ 5 / — Excellent
- Stock: In Stock
- Reward Points: 1080
- Model: 11115427010
- Dimensions: 130.00mm x 7.50mm x 130.00mm
- SKU: 910032
- TN VED codes of the EAEU: 68042100000
