Diamond cutting disc 1A1R 125 ESTHETE
- Disc diameter 125 mm.
- Mounting hole diameter 22․22mm.
- The depth of the blade: 8 mm diamond, the thickness of which is 1.1 mm.
- Disc thickness 0.8 mm.
- Maximum rotation speed 12250 rpm.
- Maximum speed 80 m/s.
- Cooling: Without cooling.
- Materials for use: Ceramics, Porcelain tiles.
- Packed in a color box.
The DISTAR 1A1R ESTHETE diamond disc is used for cutting ceramic materials with decorative coatings.
Equipped with an ultra-thin diamond-bearing layer of 1.1 mm, which allows cutting tiles even with a soft glazed coating.
The diamond-bearing layer is equipped with fine diamond grain. The disc makes such a clean cut that in most cases it can even replace a tile cutting machine.
The disc is available in two variations on the market, with a diameter of 125 and 115 mm, which makes it possible to use it on any angle grinder models with a standard mounting mount.

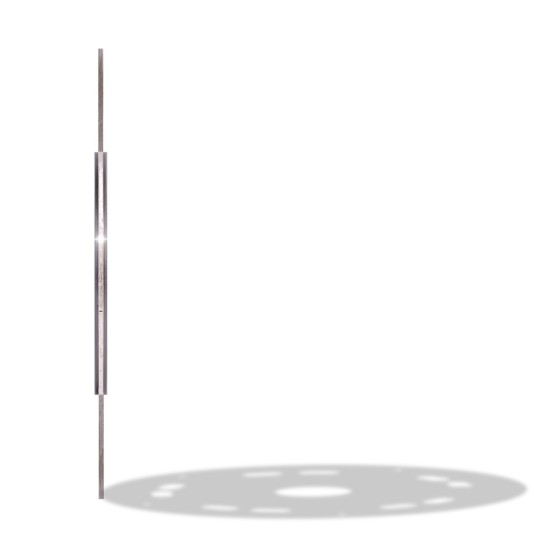

The new design of the disc with the effect of a 'transparent body in the cut' allows you to control the cutting line.
The disc body, reinforced with a flange, ensures confident cutting of hard ceramic tiles.
Laser segmentation provides effective cooling of the cutting layer.
Vertical - speed (running meters/min), horizontal - edge quality
The data are given under the following conditions:
• porcelain stoneware, 10 mm;
• Ø 125 mm;
• serviceable angle grinder with a power of 1.4 kW, with a rotation speed of 11,000 rpm;
• air temperature +25 C°.
The data is for reference only. Under other operating conditions, the performance parameters may differ significantly
/ # / — Edge quality
/ 3 / — Average
/ 4 / — Good
/ 5 / — Excellent
- Stock: In Stock
- Reward Points: 1760
- Model: 11115421010
- Dimensions: 130.00mm x 7.50mm x 130.00mm
- SKU: 910031
- TN VED codes of the EAEU: 68042100000
