Diamond cutting disc Turbo 125 M14F Elite 125x22.22x10x2.2mm

Diamond cutting disc Turbo 125 M14F Elite

• Disc diameter 125 mm.
• Mounting hole diameter 22․22mm.
• The depth of the blade:10 mm diamond․
• Disc thickness 2.2 mm.
• Maximum rotation speed 12200 rpm.
• Maximum speed 80 m/s.
• Cooling: Without cooling.
• Materials for use: Ceramics,Granite (all types), extra-hard porcelain stoneware, marble (all types), sandstone (all types)
• Packed in a color box.

The 1A1R 125 Turbo Elite diamond wheel from Di-Star is a specialized Expert class diamond tool designed for use on small-diameter hand-held angle grinders. The wheel is a 125 mm diameter wheel and is intended for use only on dry cuts.

The wheel works under heavy loads, in particular, for cutting all types of colored granite and hard natural stone, such as sandstone. To make the material easier to process, a special design was created for the wheel that supports the ability to dry cut without interruption for an optimal time and consumes fewer resources.

Turbo Elite is used in production, everyday life and construction. The wheel is universal, although its use is limited to a range of natural materials. The cut is stable, the wheel itself has a standard outer hole, diameter 22.22 mm. Hand tools are well suited for careful work with stone, so cutting granite slabs does not cause inconvenience and does not waste material as much as non-specialized discs from other manufacturers do.

Do not deform or upgrade the diamond tool in order to adjust it to work with another material for which it is not intended, this will entail a limitation of the warranty period.

Distinctive features of the 1A1R 125 Turbo Elite diamond disc:

Special disc for cutting natural stone;

Stable operation;

Optimal combination of speed and quality;

High resource level;

Increased resistance coefficient when cutting granite, wear resistance.

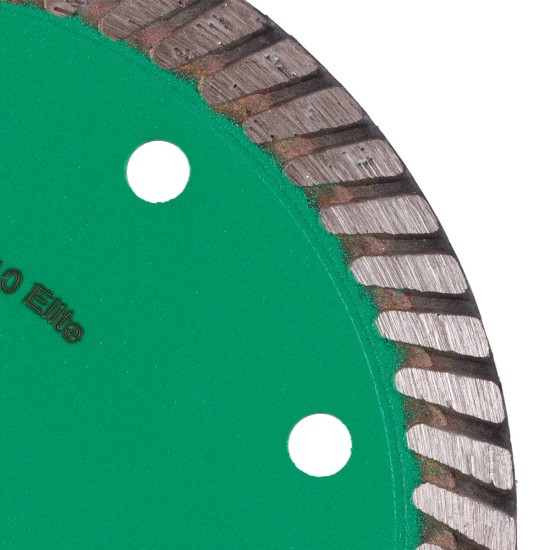

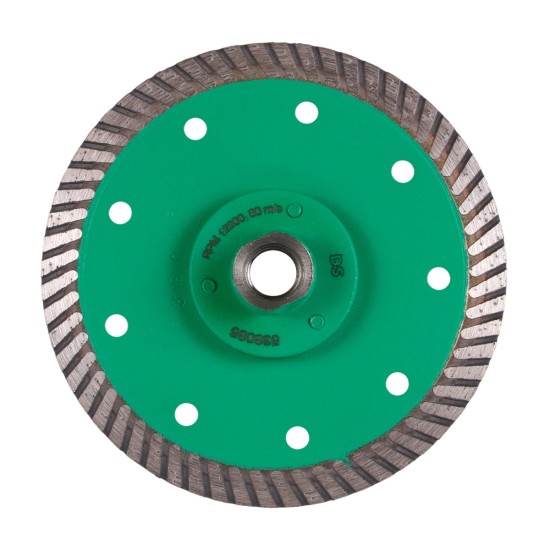

The disc is a turbocharged diamond circle with holes along the perimeter of the circle for seating. These holes serve for additional cooling of the tool during operation. Since it is impossible to use a cooling liquid when cutting, its operating time is limited to 3 minutes of continuous cutting.

The diamond layer on the edge of the disc reaches a height of 10 mm., this is the optimal indicator for penetration into the material, which allows you to cut granite without chipping. In order for the circle to retain diamonds longer and be more wear-resistant to loads, cut for no more than 3 minutes, then cool the tool. This way, the diamonds will last longer and the cutting quality will not differ significantly even after a year of use.
