Diamond cutting disc 1A1R 125 Edge Dry
- Disc diameter 125 mm.
- Mounting hole diameter 22․22mm.
- The depth of the blade:25 mm diamond, the thickness of which is 1.6 mm.
- Disc thickness 1.6 mm.
- Maximum rotation speed 12250 rpm.
- Maximum speed 80 m/s.
- Works at 45°
- Cooling: Without cooling.
- Materials for use: Ceramics, Porcelain tiles.
- Packed in a color box.
45° Easy!

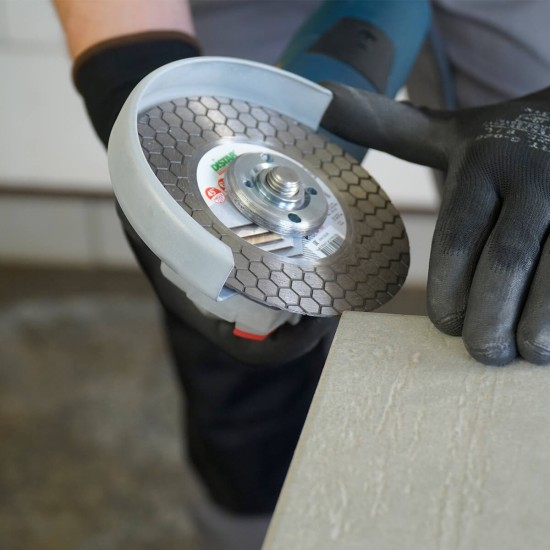

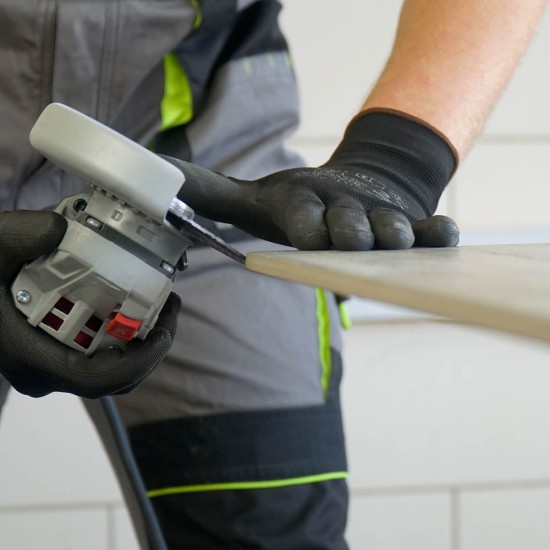

Cutting ceramic tiles at 45 degrees "chamfering" is the most common operation in finishing works. Many craftsmen do it manually with an angle grinder. Requirements for a diamond disc: sufficient rigidity of the body, at the same time softness of cutting, the ability to grind the edge.

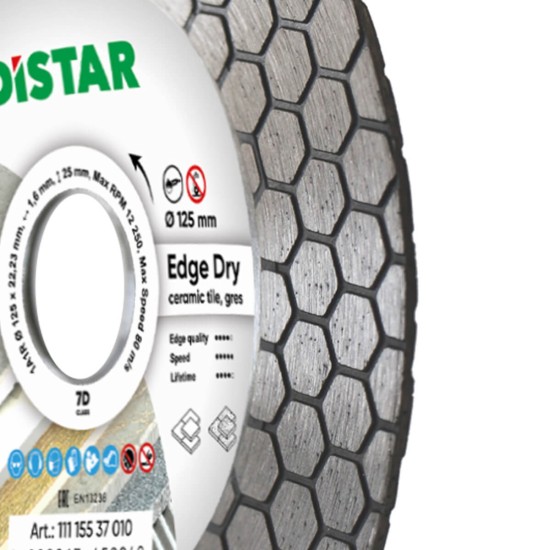

The Edge Dry disc has exactly these properties. A wide double-sided diamond-bearing layer of 25 mm reinforces the body, makes it rigid. At the same time, the diamond-bearing bond with a "honeycomb" pattern of the layer makes cutting soft and highly productive. A large plane creates a "support" effect, directing the disc strictly in a straight line. Additionally, you can grind the edge of the end of the tile.
With such a disc, chamfering at 45° becomes a real pleasure!
The disc is produced with a diameter of 125 mm, a seat of 22.2 mm. It is used on an angle grinder without the use of cooling.
Vertical - speed (running meters/min), horizontal - edge quality
The data are given under the following conditions:
• porcelain stoneware, 10 mm;
• Ø 125 mm;
• serviceable angle grinder with a power of 1.4 kW, with a rotation speed of 11,000 rpm;
• air temperature +25 C°.
The data is for reference only. Under other operating conditions, the performance parameters may differ significantly
/ # / — Edge quality
/ 3 / — Average
/ 4 / — Good
/ 5 / — Excellent
- Stock: In Stock
- Reward Points: 2090
- Model: 11115537010
- Dimensions: 130.00mm x 7.50mm x 130.00mm
- SKU: 910037
- TN VED codes of the EAEU: 68042100000
