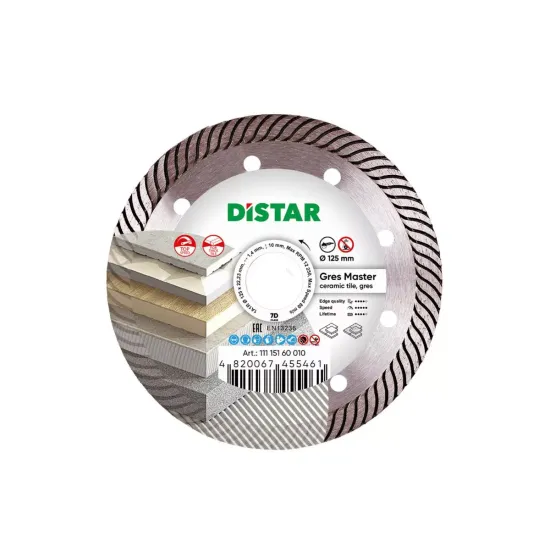

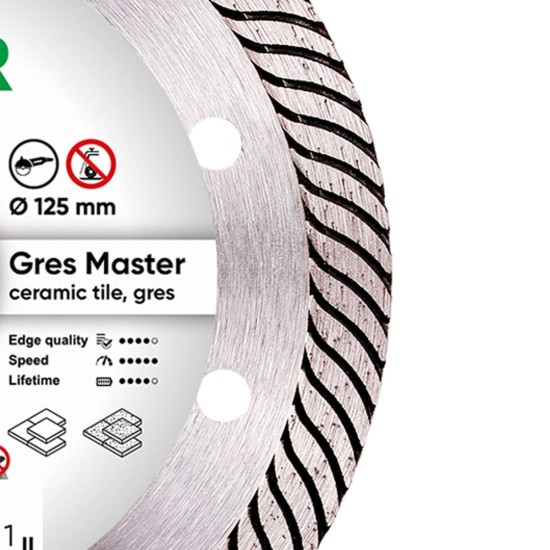

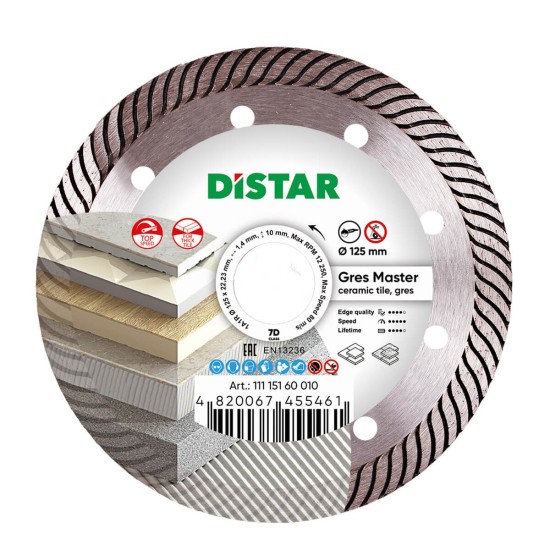

Diamond cutting disc 1A1R 125 Gres Master 125x22.22x10x1.4mm
- Disc diameter 125 mm.
- Mounting hole diameter 22․22mm.
- The depth of the blade:10 mm diamond, the thickness of which is 1.4 mm.
- Disc thickness 1.4 mm.
- Maximum rotation speed 12250 rpm.
- Maximum speed 80 m/s.
- Cooling: Without cooling.
- Materials for use: Ceramics, Porcelain tiles.

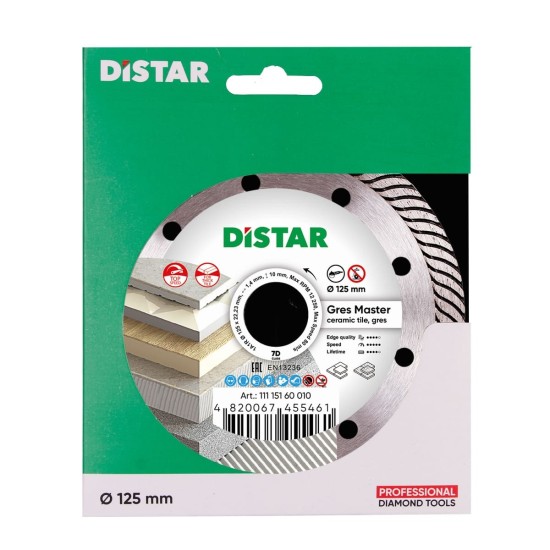

- Packed in a color box.
It doesn't get any faster.
Every year new types of porcelain tiles with increased frost resistance and abrasion resistance appear. Porcelain tiles with a thickness of 14 and 20 mm are increasingly used. Such materials are very difficult to cut with conventional diamond discs. Burning, disc deformation, and stop during cutting occur.

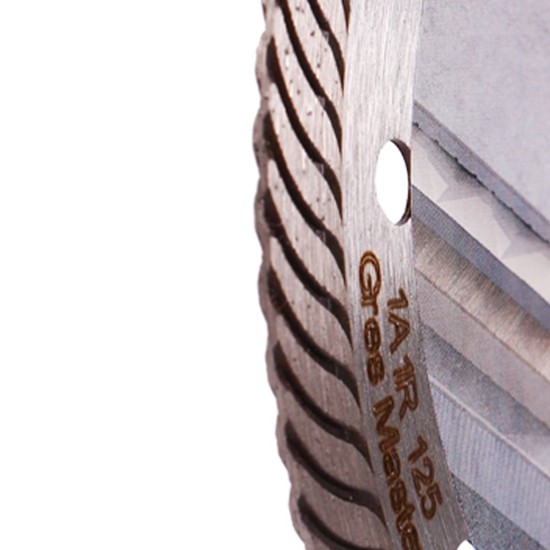

The Gres Master disc is designed specifically for such difficult conditions of use. The involute turbo grooves of the diamond-bearing layer are effectively introduced into the durable material, cooling the cutting zone. The disc is gently sunk even into the thickest porcelain tiles.
Thanks to such high performance, this is the fastest disc in the entire Distar line. The disc will also cut conventional porcelain tiles, but at a very high speed.
The edge quality is inferior to the Esthete and Decor Slim discs, but very often such cleanliness is not required, especially where the tile joint is covered with molding.

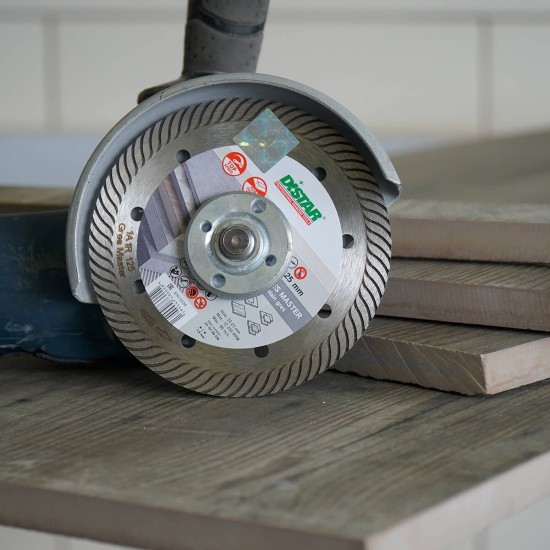

Available in diameters of 115 and 125 mm. Used on angle grinders without cooling.
Vertical - speed (running meters/min), horizontal - edge quality
The data are given under the following conditions:
• porcelain stoneware, 10 mm;
• Ø 125 mm;
• serviceable angle grinder with a power of 1.4 kW, with a rotation speed of 11,000 rpm;
• air temperature +25 C°.
The data is for reference only. Under other operating conditions, the performance parameters may differ significantly
/ # / — Edge quality
/ 3 / — Average
/ 4 / — Good
/ 5 / — Excellent
- Stock: In Stock
- Reward Points: 1250
- Model: 11115160010
- Dimensions: 130.00mm x 7.50mm x 130.00mm
- SKU: 910033
- TN VED codes of the EAEU: 68042100000
