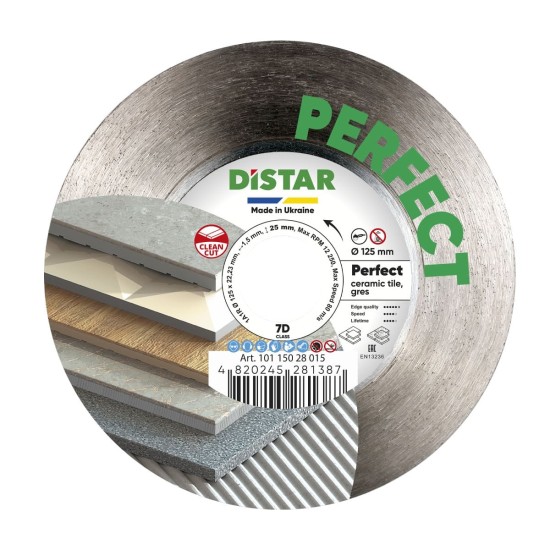

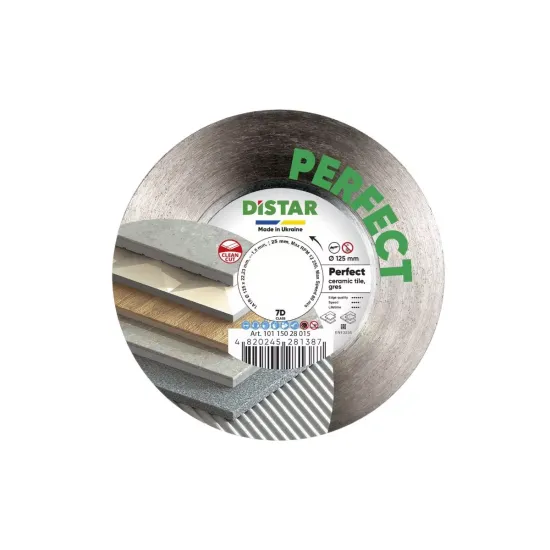

Diamond cutting disc 1A1R 125x22,23H Perfect 10115028015
- Disc diameter 125 mm.
- Mounting hole diameter 22․23mm.

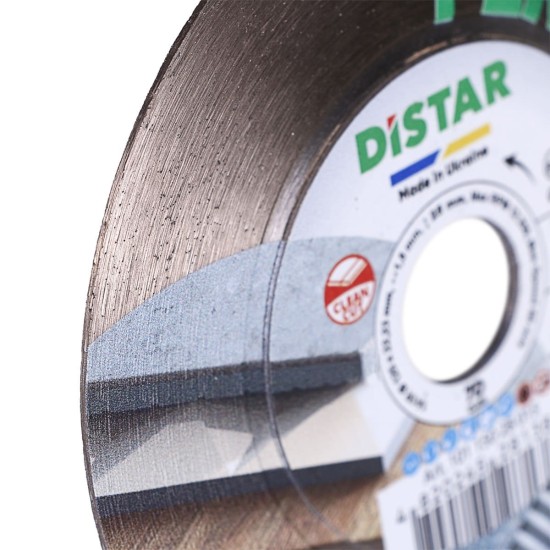

- The depth of the blade: 25 mm diamond, the thickness of which is 1.1 mm.

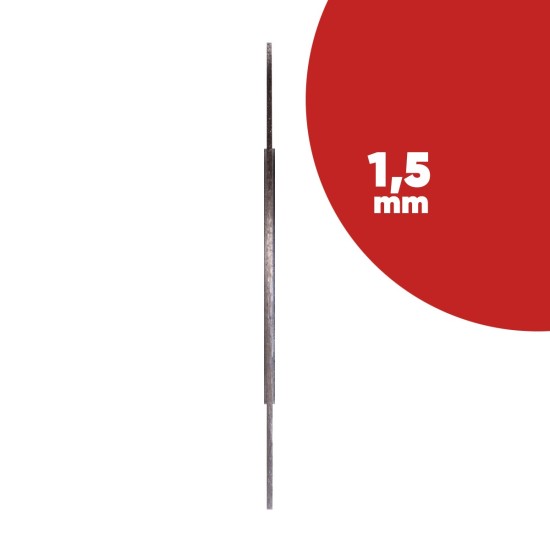

- Disc thickness 1․5 mm.
- Maximum rotation speed 12250 rpm.
- Maximum speed 80 m/s.
- Cooling: Without cooling.
- Materials for use: Ceramics, Porcelain tiles.
- Packed in a color box.
Perfect
Just Perfect
All craftsmen know the legendary Esthete disc for its clean cut. However, it also has a drawback. The clean cut is ensured by a thin layer of 1.1 mm, which means that you need to work with this disc very carefully so as not to put it out of order.
The Perfect disc is an even cleaner cut and at the same time it is more durable and reliable. Reliability is ensured by an increased layer thickness of 1.5 mm and an additional flange body. Cleanliness is achieved by a unique sandwich layer design.
Now you can safely cut and enjoy a super clean edge.

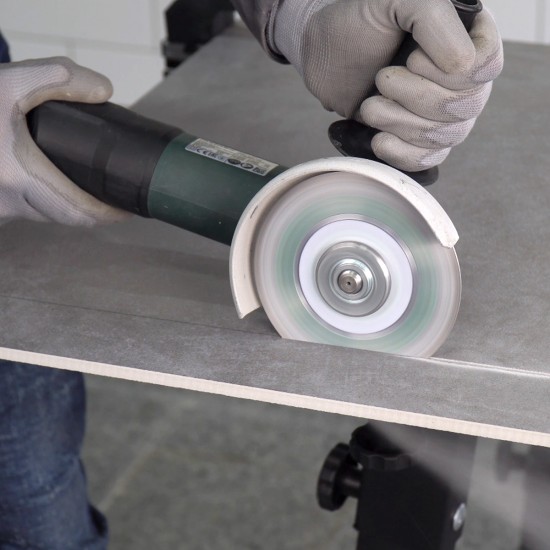

The disc is used for cutting at 90 degrees in dry mode on an angle grinder. It has an outer diameter of 125 mm and a seat of 22.2 mm.
Vertical - speed (running meters/min), horizontal - edge quality
The data are given under the following conditions:
• porcelain stoneware, 10 mm;
• Ø 125 mm;
• serviceable angle grinder with a power of 1.4 kW, with a rotation speed of 11,000 rpm;
• air temperature +25 C°.
The data is for reference only. Under other operating conditions, the performance parameters may differ significantly
/ # / — Edge quality
/ 3 / — Average
/ 4 / — Good
/ 5 / — Excellent
- Stock: In Stock
- Reward Points: 2620
- Model: 10115028015
- Dimensions: 130.00mm x 7.50mm x 130.00mm
- SKU: 910036
- TN VED codes of the EAEU: 68042100000
