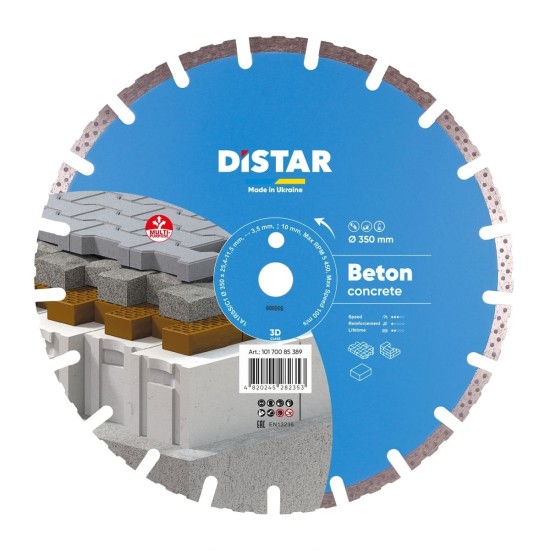

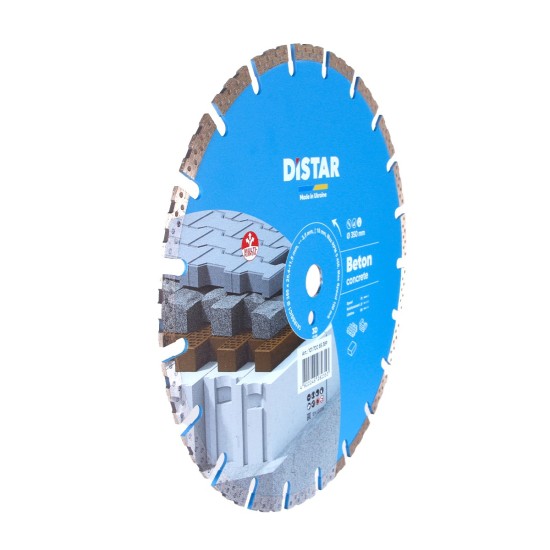

Diamond disc for concrete 350X 25.4 X11.5 X 3.5

Concrete diamond disc 350x25․4x11․5x(10mm)3․5 Distar 1A1RSS 10170085389

• Disc diameter: 350 mm.
• Arbor diameter: 25.4 mm.

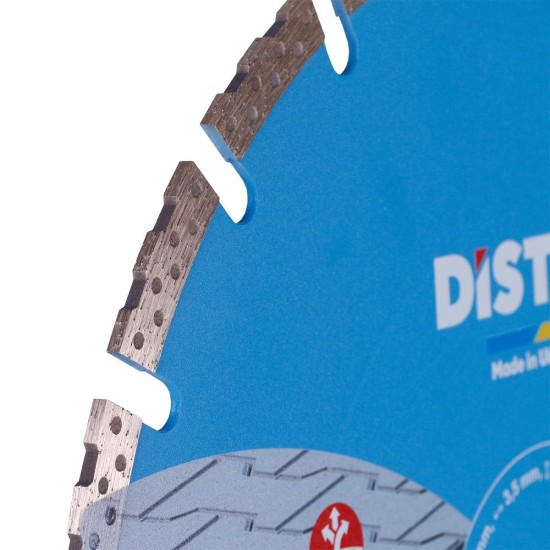

• Number of segments: 24.

• Blade width: 11.5 mm, of which 10 mm is diamond-tipped.
• Disc thickness: 3.5 mm.
• Maximum rotation speed: 5450 RPM.
• Maximum speed: 100 m/s.
• Cooling: water.
• Materials for use: Paving slabs, Unreinforced concrete.
• Compatible with TPC9203556.TP1016-1․TP1016-2

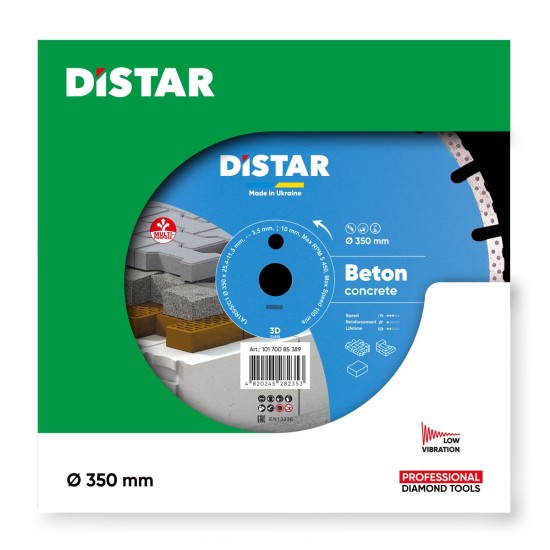

• Packaged in a colored box

Diamond disc TAC2113551 is designed for angle grinders and cutting devices. Dry and wet cutting of concrete, stone, brick can be carried out. Provides high quality fast cutting.

The data are given under the following conditions:

- concrete M250, reinforcement Ø16 mm, 7 pcs./1 m running;

- disk Ø 350 mm;

- cutting depth 110 mm;

- work with a serviceable joint cutter with a power of 9.6 kW and a rotation speed of 2500 rpm;

- air temperature +25 C°.

The data is for reference only. Under other operating conditions, the performance parameters may differ significantly.
