Name: Inverter MMA welding machine 160A IGBT
Brand: Total Tools
SKU: 34214
Price: 49275.00 AMD
Availability: OutOfStock

Inverter MMA welding machine 160A IGBT

In Stock

Additional Tabs
Videos

Unlimited Blocks, Tabs or Accordions with any HTML content can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules. Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Inverter MMA welding machine 160A IGBT

This product qualifies for free shipping

This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.

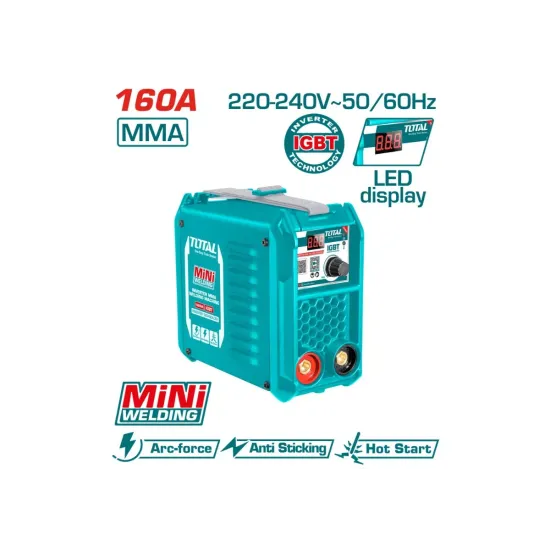

Inverter MMA welding machine 160A IGBT TOTAL TW216018

MMA(Manual Metal Arc) - manual arc welding with coated stick electrodes.

ARC-Force: Adjusts the amperage to avoid sticking of the electrode when the distance between the electrode and the work piece decreases.
Hot start: Simplifies arc striking by briefly increasing the amperage at the start of welding.
Anti-Stick: cuts power to the equipment when the electrode sticks, taking care of the part, electrode and making it easier to take off.
Included:

IGBT inverter technology.
Power: 5.72 kVA = 4.58 kW.
Input voltage: 1~220-240V.
Frequency: 50/60Hz.
Output current: 15-160A.
Max.output current: 160A.
Duty cycle: 160A@30%
LED screen.
No-load voltage: 81V.
Diameter of electrode: 1.6-3.2mm
IP21 protection rating.
Anti-stick/Hot start/Arc-force.

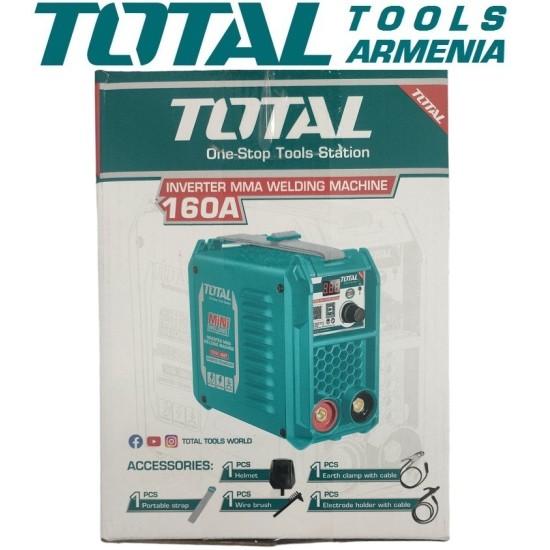

Packed by color box:
1 Pcs helmet.
1 Pcs wire brush.
1 Pcs earth clamp with cable.
1 Pcs electrode holder with cable.

1 Pcs portable strap.

Warranty: 2 year.

	TYPES OF METALS	THICKNESS OF METAL, mm	BENEFITS	RESTRICTIONS
MMA	steel (carbon, low-alloy, high-alloy)	From 1.6 mm. and higher	Simplicity and availability of the welding process Minimum set of consumables Welding in any position	Restrictions on the types and thicknesses of metals to be welded. Limited performance The need to remove slag from parts.

Technical
Power	5.72 kVA = 4.58 kW. - 160 A
Type	Inverter MMA welding machine 160A IGBT - - MMA - Manual Metal Arc.
Features	ARC-Force: Hot start. Anti-Stick. Stable arc. Built-in cable feeder.
Productivity	160 A at 30%
Modes and Functions	LED display. Fan cooling. Thermal safety. IGBT technology. 160 A at 30%. No-load voltage: 81V. IP21 protection rating.
Engine type	Electric
Structure
Body material	Metal, Plastic
Size	Welding wire diameter(MMA): 1.6 - 3.2 mm.
Nutrition
Nutrition	220-240 V ~ 50/60 Hz
Cable length	2 meters

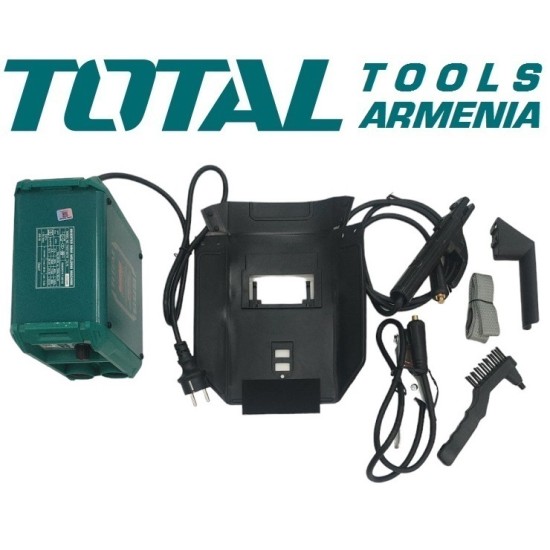

Set
Packing	Carton box
In the set	1 Pcs helmet. 1 Pcs wire brush. 1 Pcs earth clamp with cable. 1 Pcs electrode holder with cable. 1 pcs. portable strap
