Name: Welding machine 160 A Inverter/MAG/MIG/MMA/TIG
Brand: Total Tools
SKU: 21133
Price: 196630.00 AMD
Availability: InStock

Welding machine 160 A Inverter/MAG/MIG/MMA/TIG

Additional Tabs
Videos

Unlimited Blocks, Tabs or Accordions with any HTML content can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules. Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Welding machine 160 A Inverter/MAG/MIG/MMA/TIG

This product qualifies for free shipping

This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.

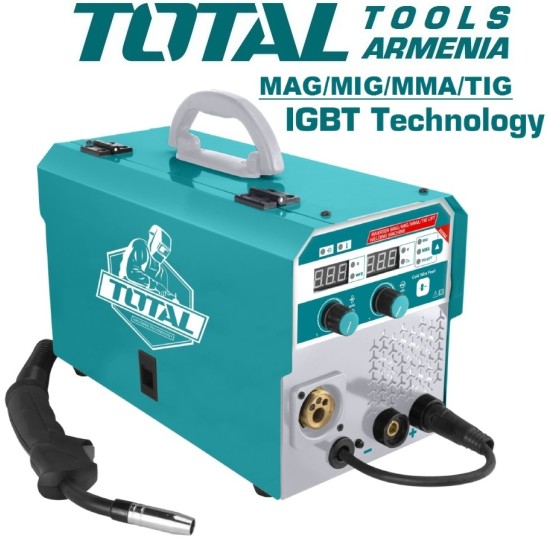

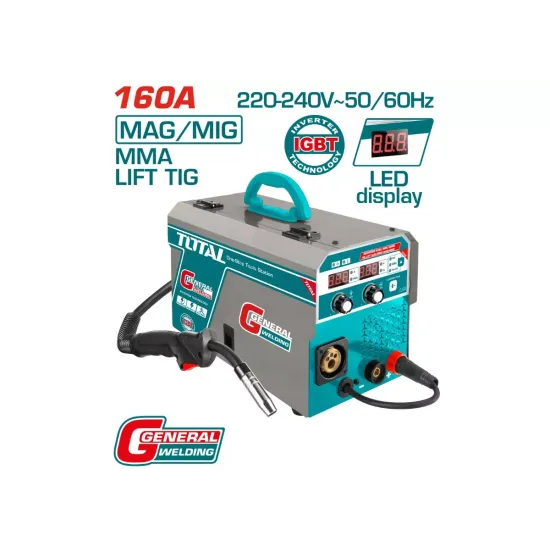

Welding machine TOTAL TMGT1601 160 A Inverter/MAG/MIG/MMA/TIG

Depending on the material or the specifics of the products, the craftsmen choose different welding methods, for example,
MMA(Manual Metal Arc) - manual arc welding with coated stick electrodes.
TIG(Tungsten Inert Gas) - argon manual welding with tungsten non-consumable electrodes with a shielding gas (argon). However, MIG-MAG welding is the most widely used:
MIG(Metal Inert Gas) - is welding in which an inert gas such as helium or argon acts as an insulating medium.
MAG(Metal Active Gas) - is a type of welding using an active gas, such as nitrogen, carbon dioxide, etc.
The Total TMGT1601 welding machine, always leading in quality, is designed compact, not bulky to help us move easily and quickly, the machine works continuously for a long time without reducing quality, capacity.
Inverter welding with control technology. Has automatic protection against electrical vibrations. Portable, fan cooled.
Temperature control to protect equipment.
ARC-Force: Adjusts the amperage to avoid sticking of the electrode when the distance between the electrode and the work piece decreases.
Hot start: Simplifies arc striking by briefly increasing the amperage at the start of welding.
Anti-Stick: cuts power to the equipment when the electrode sticks, taking care of the part, electrode and making it easier to take off.
Included:

With electrode tweezers 1 pc. With cable.

With 1 earthing clamp with cable.

With 1 wire brush and 1 mask.

With wire tweezers 1 pc.

Spare parts:

Fast Recovery Diode TMGT1601-SP-21

Quick Connector TMGT1601-SP-30

MMA - Manual electric arc welding.
MIG (Metal Inert Gas) - using inert gas. MIG machines are perfect for welding aluminum, copper, titanium products, nickel and various alloys.
MAG (Metal Active Gas) - using nitrogen, carbon dioxide and other gases that bind oxygen. The type of welding is used for workpieces made of low-alloy, unalloyed and corrosion-resistant steels.
TIG - Argon arc welding. exceptional quality of the weld.
Power: 5.72 kVA = 4.58 kW.
Voltage: 220-240 V ~ 50/60 Hz.
Output voltage (MMA): 10 - 160 A.
Output voltage (MIG): 30 - 160 A.
Output voltage (MAG): 30 - 160 A.
Output voltage increase (TIG): 30 - 160 A.
No-load voltage: 80 V.
Maximum output voltage: 160 A.
Rated duty cycle: 30% @ 160A, 40 ℃.
Welding wire diameter(MMA): 1.6 - 4 mm.
Welding wire size(MAG/MIG/TIG): 0.6, 0.8, 1.0 mm.
Welding wire - TEWSFC081001 .
Powered by a 5 kg wire spool.
Wire feed speed: 2-11 (m / min).
Built-in cable feeder.
IGBT technology.
IP21 protection rating.
Insulation class: H.
LCD display.
Weight: 10 kg.
Warranty: 2 year.

	TYPES OF METALS	THICKNESS OF METAL, mm	BENEFITS	RESTRICTIONS
MMA	steel (carbon, low-alloy, high-alloy)	From 1.6 mm. and higher	Simplicity and availability of the welding process Minimum set of consumables Welding in any position	Restrictions on the types and thicknesses of metals to be welded. Limited performance The need to remove slag from parts.
MIG-MAG	All types of steels, copper, aluminum and its alloys, cast iron	From 1 mm and above	High performance Quality seam No slag	Limited mobility The need for additional consumables and additional. equipment
TIG	All types of steels, copper and its alloys, cast iron, titanium Aluminum and its alloys	0.5 mm and above	The ability to weld any metal Aesthetic and quality seam	Poor performance The need for additional consumables and additional. equipment

Technical
View	MMA - Manual Metal Arc. TIG - Tungsten Inert Gas. MIG - Metal Inert Gas. MAG - Metal Active Gas.
Power	5.72 kVA= 4.58 kW - 160 A
Type	Welding machine - Inverter/MAG/MIG/MMA/TIG
Features	ARC-Force: Hot start. Anti-Stick. Stable arc. Built-in cable feeder.
Productivity	160 A at 30%.
Modes and Functions	LCD display. Fan cooling. Thermal safety. IGBT technology. 160 A at 30%. IP21 protection rating. Insulation class: H. Wire feed speed: 2-11 (m / min). Powered by a 5 kg wire spool.
Engine type	Electric
Structure
Body material	Metal, Plastic
Weight	10 kg.
Size	Welding wire diameter(MMA): 1.6 - 4 mm. Welding wire size(MAG/MIG/TIG): 0.6, 0.8, 1.0 mm.
Nutrition
Nutrition	230 V ~ 50/60 Hz
Cable length	2 meters
Set
Packing	Carton box
In the set	With electrode tweezers 1 pc. With cable. With 1 earthing clamp with cable. With 1 wire brush and 1 mask. With wire tweezers 1 pc.
