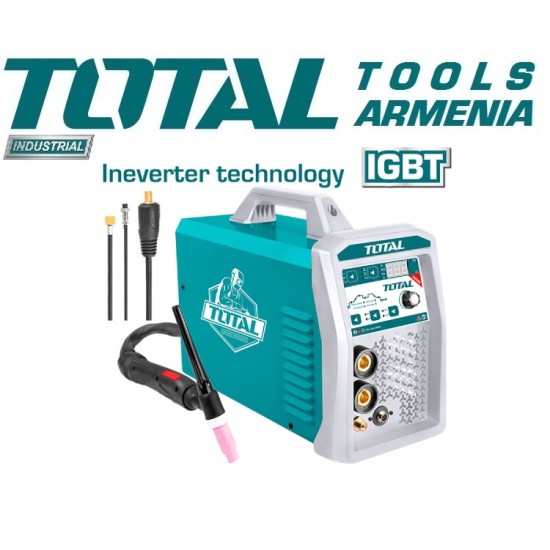

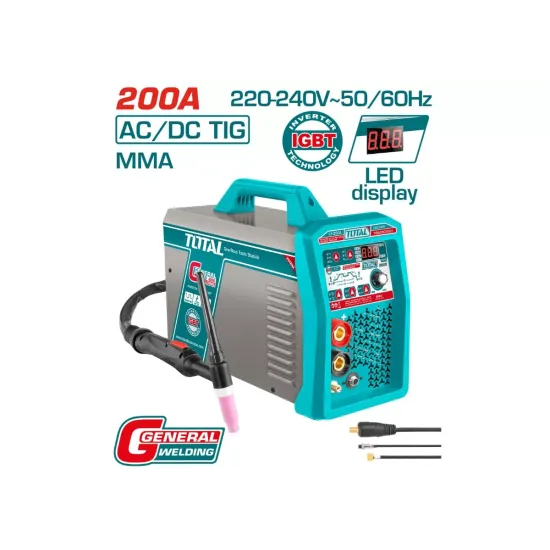

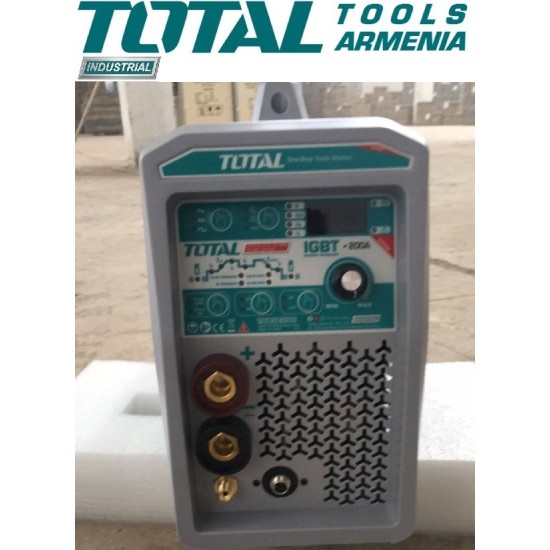

Inverter AC - DC TIG/MMA welding machine 200A TOTAL TIGACDC2001

The inverter welding machine is designed for welding various steel and metal structures. The device is equipped with a digital display for easy monitoring of indicators, as well as a comfortable handle. The device is perfect for use in workshops, on small construction sites, during repair and installation.,
MMA(Manual Metal Arc) - manual arc welding with coated stick electrodes.
TIG(Tungsten Inert Gas) - argon manual welding with tungsten non-consumable electrodes with a shielding gas (argon). However, MIG-MAG welding is the most widely used:
Anti-Stick: cuts power to the equipment when the electrode sticks, taking care of the part, electrode and making it easier to take off.
Included:

With electrode tweezers 1 pc. With cable.

With 1 earthing clamp with cable.

With 1 wire brush and 1 mask.

With wire tweezers 1 pc.

MMA - Manual electric arc welding.
TIG - Argon arc welding. exceptional quality of the weld.
Power: 5.72 kVA = 4.58 kW.
Voltage: 220-240 V ~ 50/60 Hz.
Output voltage (MMA): 15 - 200 A.
Output voltage increase (TIG): 15 - 200 A.
No-load voltage: 68 V.
Maximum output voltage: 200 A.
Rated duty cycle: 40% @ 160A, 40 ℃.
Welding wire diameter(MMA): 1.6 - 3.2 mm.
Welding wire size(TIG): 1.6, 2.4, 3.2 mm.
Powered by a 5 kg wire spool.
Wire feed speed: 2-11 (m / min).
Built-in cable feeder.
IGBT technology.
IP21 protection rating.
Insulation class: F.
LCD display.
Weight: 10 kg.
Warranty: 1 year

Technical
View	MMA - Manual Metal Arc. TIG - Tungsten Inert Gas.
Power	5.72 kVA= 4.58 kW - 200 A
Type	Inverter AC - DC TIG/MMA welding machine
Features	ARC-Force: Hot start. Anti-Stick. Stable arc. Built-in cable feeder.
Modes and Functions	LCD display. Fan cooling. Thermal safety. IGBT technology. 200 A at 40%. IP21 protection rating. Insulation class: F. Wire feed speed: 2-11 (m / min). Powered by a 5 kg wire spool.
Engine type	Electric
Structure
Body material	Metal, Plastic
Weight	10 kg.
Size	Welding wire diameter(MMA): 1.6 - 3.2 mm. Welding wire size(TIG): 1.6, 2.4, 3.2 mm.
Nutrition
Nutrition	230 V ~ 50/60 Hz
Cable length	2 meters
Set
Packing	Carton box
In the set	With electrode tweezers 1 pc. With cable. With 1 earthing clamp with cable. With 1 wire brush and 1 mask. With wire tweezers 1 pc.
