Name: Inverter TIG/MMA welding machine 160A
Brand: Total Tools
SKU: 23459
Price: 162000.00 AMD
Availability: OutOfStock

Inverter TIG/MMA welding machine 160A

In Stock

Additional Tabs
Videos

Unlimited Blocks, Tabs or Accordions with any HTML content can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules. Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Inverter TIG/MMA welding machine 160A

This product qualifies for free shipping

This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.

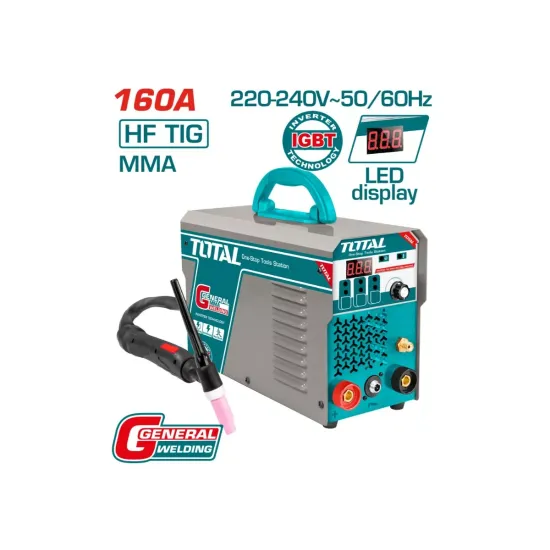

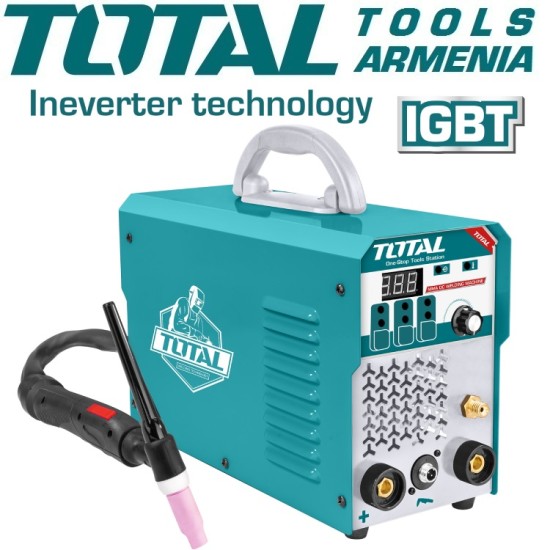

Inverter TIG/MMA welding machine 160A TOTAL TIG1601

Depending on the material or the specifics of the products, the craftsmen choose different welding methods, for example,
MMA(Manual Metal Arc) - manual arc welding with coated stick electrodes.
TIG(Tungsten Inert Gas) - argon manual welding with tungsten non-consumable electrodes with a shielding gas (argon). However, MIG-MAG welding is the most widely used:
The Total TIG1601 welding machine, always leading in quality, is designed compact, not bulky to help us move easily and quickly, the machine works continuously for a long time without reducing quality, capacity.
Inverter welding with control technology. Has automatic protection against electrical vibrations. Portable, fan cooled.
Temperature control to protect equipment.
ARC-Force: Adjusts the amperage to avoid sticking of the electrode when the distance between the electrode and the work piece decreases.
Hot start: Simplifies arc striking by briefly increasing the amperage at the start of welding.
Anti-Stick: cuts power to the equipment when the electrode sticks, taking care of the part, electrode and making it easier to take off.

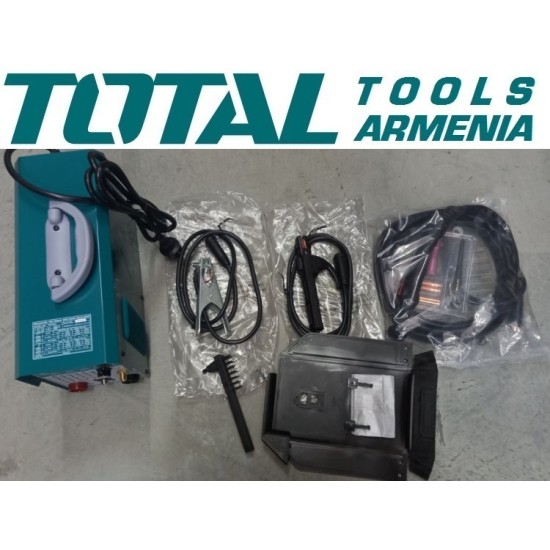

Included:

With electrode tweezers 1 pc. With cable.

With 1 earthing clamp with cable.

With 1 wire brush and 1 mask.

With wire tweezers 1 pc.

MMA - Manual electric arc welding.
TIG - Argon arc welding. exceptional quality of the weld.
Power: 5.72 kVA = 4.58 kW.
Voltage: 220-240 V ~ 50/60 Hz.
Output voltage (MMA): 15 - 160 A.
Output voltage increase (TIG): 15 - 160 A.
No-load voltage: 85 V.
Maximum output voltage: 160 A.
Rated duty cycle: 40% @ 160A, 40 ℃.
Welding wire diameter(MMA): 1.6 - 3.2 mm.
Welding wire size(TIG): 1.6, 2.4, 3.2 mm.
Powered by a 5 kg wire spool.
Wire feed speed: 2-11 (m / min).
Built-in cable feeder.
IGBT technology.
IP21 protection rating.
Insulation class: H.
LCD display.
Weight: 10 kg.
Warranty: 2 year.

TYPES OF METALS

THICKNESS OF METAL, mm

BENEFITS

RESTRICTIONS

High performance

Quality seam

No slag

Limited mobility

The need for additional consumables and additional. equipment

TIG

All types of steels, copper and its alloys, cast iron, titanium

Aluminum and its alloys

0.5 mm and above

The ability to weld any metal

Aesthetic and quality seam

Poor performance

The need for additional consumables and additional. equipment

Technical
Power	5.72 kVA= 4.58 kW - 160 A
Type	Welding machine - Inverter/MMA/TIG - MMA - Manual Metal Arc. TIG - Tungsten Inert Gas.
Features	ARC-Force: Hot start. Anti-Stick. Stable arc. Built-in cable feeder.
Productivity	160 A at 40%.
Modes and Functions	LCD display. Fan cooling. Thermal safety. IGBT technology. 160 A at 40%. IP21 protection rating. Insulation class: H. Wire feed speed: 2-11 (m / min). Powered by a 5 kg wire spool.
Engine type	Electric
Structure
Body material	Metal, Plastic
Weight	10 kg.
Size	Welding wire diameter(MMA): 1.6 - 3.2 mm. Welding wire size(TIG): 1.6, 2.4, 3.2 mm.
Nutrition
Nutrition	230 V ~ 50/60 Hz
Cable length	2 meters
Set
Packing	Carton box
In the set	With electrode tweezers 1 pc. With cable. With 1 earthing clamp with cable. With 1 wire brush and 1 mask. With wire tweezers 1 pc.
