Name: Inverter MMA/TIG Lift welding machine 200A IGBT
Brand: Total Tools
SKU: 34217
Price: 78975.00 AMD
Availability: OutOfStock

Inverter MMA/TIG Lift welding machine 200A IGBT

In Stock

Additional Tabs
Videos

Unlimited Blocks, Tabs or Accordions with any HTML content can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules. Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Inverter MMA/TIG Lift welding machine 200A IGBT

This product qualifies for free shipping

This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.

Inverter MMA/TIG Lift welding machine 200A IGBT TOTAL TW2200381

Depending on the material or the specifics of the products, the craftsmen choose different welding methods, for example,
MMA(Manual Metal Arc) - manual arc welding with coated stick electrodes.
TIG(Tungsten Inert Gas) - argon manual welding with tungsten non-consumable electrodes with a shielding gas (argon).

ARC-Force: Adjusts the amperage to avoid sticking of the electrode when the distance between the electrode and the work piece decreases.
Hot start: Simplifies arc striking by briefly increasing the amperage at the start of welding.
Anti-Stick: cuts power to the equipment when the electrode sticks, taking care of the part, electrode and making it easier to take off.
Included:

IGBT inverter technology.
Power: 8.4 kVA = 6.72 kW.
Input voltage: 1~220-240V.
Frequency: 50/60Hz.
Output current: 10-200A.
Max.output current: 200A
Duty cycle: 200A@60%
LCD screen.
With Lift TIG function.
With VRD function.
No-load voltage: 79V.
Diameter of electrode: 1.6-4.0mm
IP21 protection rating.
Anti-stick/Hot start/Arc-force.

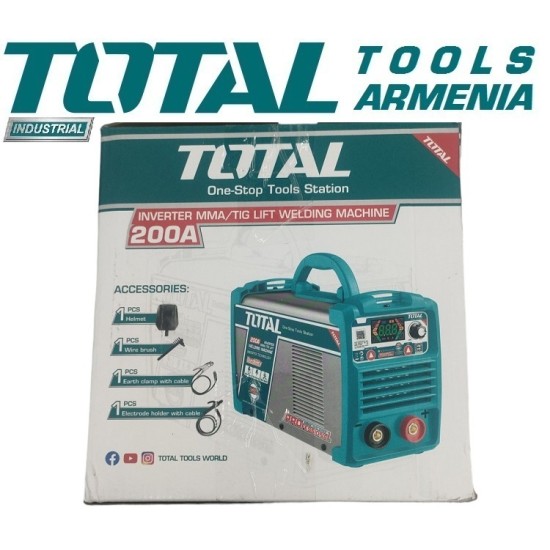

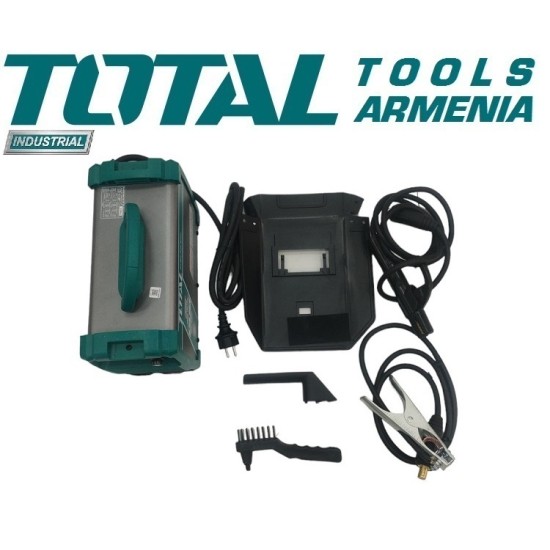

Packed by color box:
1 Pcs helmet.
1 Pcs wire brush.
1 Pcs earth clamp with cable.
1 Pcs electrode holder with cable.
Warranty: 2 year.

	TYPES OF METALS	THICKNESS OF METAL, mm	BENEFITS	RESTRICTIONS
MMA	steel (carbon, low-alloy, high-alloy)	From 1.6 mm. and higher	Simplicity and availability of the welding process Minimum set of consumables Welding in any position	Restrictions on the types and thicknesses of metals to be welded. Limited performance The need to remove slag from parts.
MIG-MAG	All types of steels, copper, aluminum and its alloys, cast iron	From 1 mm and above	High performance Quality seam No slag	Limited mobility The need for additional consumables and additional. equipment
TIG	All types of steels, copper and its alloys, cast iron, titanium Aluminum and its alloys	0.5 mm and above	The ability to weld any metal Aesthetic and quality seam	Poor performance The need for additional consumables and additional. equipment

Technical
View	INDUSTRIAL
Power	8.4 kVA = 6.72 kW. - 200 A
Type	Inverter MMA/TIG Lift welding machine 200A IGBT - - MMA - Manual Metal Arc. TIG - Tungsten Inert Gas.
Features	ARC-Force: Hot start. Anti-Stick. Stable arc. Built-in cable feeder.
Productivity	200 A at 60%
Modes and Functions	LCD display. With Lift TIG function. With VRD function. Fan cooling. Thermal safety. IGBT technology. 200 A at 60%. No-load voltage: 79V. Wire feed speed: 2-11 (m / min). IP21 protection rating.
Engine type	Electric
Structure
Body material	Metal, Plastic
Size	Welding wire diameter(MMA): 1.6 - 4 mm. Welding wire size(TIG): 1.6, 2.4, 3.2 mm.
Nutrition
Nutrition	220-240 V ~ 50/60 Hz
Cable length	2 meters
Set
Packing	Carton box
In the set	1 Pcs helmet. 1 Pcs wire brush. 1 Pcs earth clamp with cable. 1 Pcs electrode holder with cable.
